Aramid Fiber Packing
Aramid fiber packing braided from high quality Dupont aramid and kevlar fiber with PTFE impregnated and lubricant additive. It is wear resistant but may damage the shaft is not used properly. A minimum shaft hardness of 60HRC is therefore recommended.

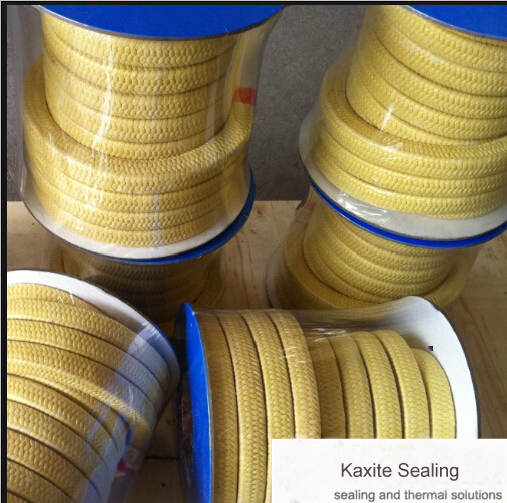

Aramid Fiber Packing
Aramid Fiber Packing Aramid Fiber Packing is braided from high quality Dupont Aramid/Kevlar fiber with PTFE Impregnation and lubricant additive. Extremely hard wearing. It shows good chemical resistance, high elasticity and very low cold flow. It is wear resistant but may damage the shaft if not used properly. A minimum shaft hardness of 60HRC is therefore recommended. Compared with other kinds of packing, it can resist more severe media and higher pressure. The packing is also lubricated with a silicone-based compound for quick and easy break-in.
APPLICATION:
It is a universal packing which can be used for pumps in all types of industry such as chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power stations etc. It is also a durable packing able to withstand granular and abrasive applications, it is recommended for serve in superheated steam, solvents, liquefied gases, sugar syrups and other abrasive fluids.
For hot water applications it can be used un-cooled up to 160oC.
It can be used as stand-alone packing also combined with others as anti-extrusion ring.
| Pressure | 8-25MPa |
|---|---|
| Temperature | -100-280oC |
| PH Range | 2-13 |
| Linear speed | 0-15m/s |
| Density | 1.3-1.4g/cm3 |
| Section Size | 3*3mm-100*100mm |
| Package | 5kgs or 10kgs per reel in a box/or as the requirement of the client |
Category: Aramid Packing,Packing Series,Products & Materials
Tags: Aramid,Aramid Fiber Packing,Gland packing,Kevlar,PTFE,pumps
